Filter Press Accessories
Filter Press Equiment Accessories
better services

Standard Management, Advance Equipment

NMP has become a reference point in the territory for all spare part needs. Customers of the past and present are satisfied customers and they keep increasing. Our well-organized and well-stocked warehouse is possible thanks to the fundamental choice of our Production Department with their commitment to quality, leading row material vendors, accessories brands in the field. In the course of time, the technical assistance has been added: ordinary and extra-ordinary servicing at the customers’ plant with the skill by our side and real answers to their problems.

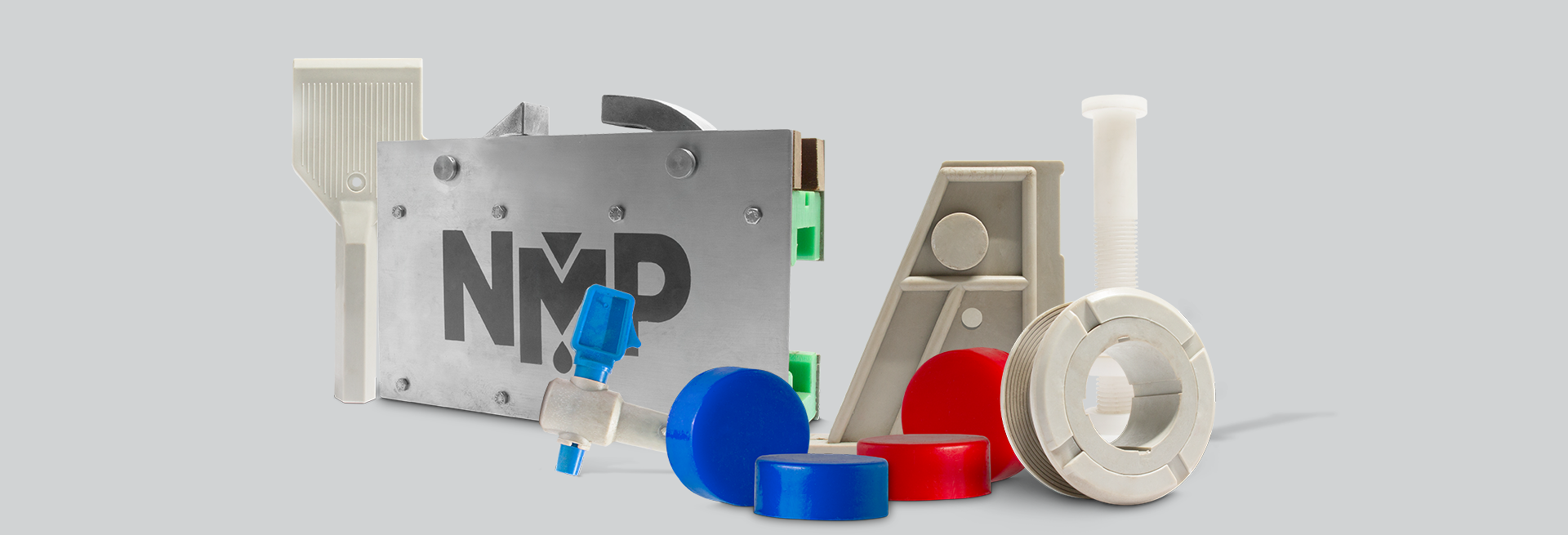

A sophisticated range of accessories for all cases.

NMP accessories are manufactured and constantly optimized on the basis of our daily experience in use and taking into account the latest technical developments.

We also attach great importance to the best quality for these products to ensure correct and satisfactory functioning.

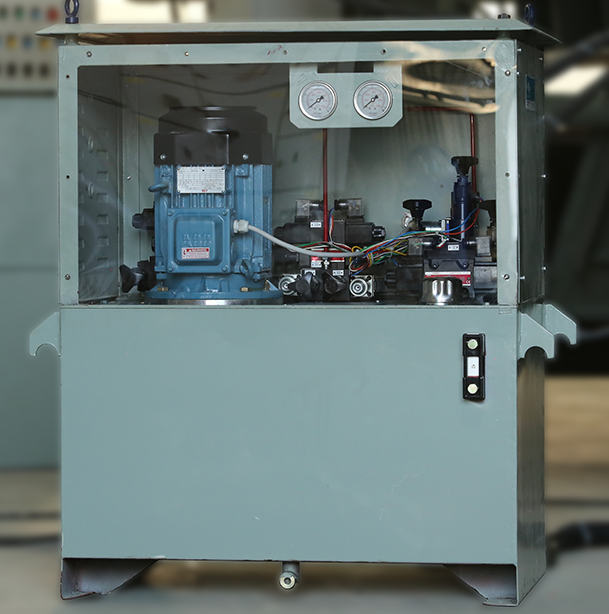

The hydraulic power packs are used to control the cylinders which move the plates. It is a self-contained unit that consists mainly of a motor, a reservoir and hydraulic pump, using fluid to transmit power from one location to another. Hydraulic power packs can generate massive amounts of power which can be used to drive hydraulic Filter Press. Our Hydraulic power pack units are designed for low noise, vibration free with excellent heat dissipation properties.

We have designed and created hydraulic power packs composed of:

  • 1 HP to 10HP Motor
  • 30 to 300 liter tank
  • Hydraulic Gear Pump
  • Customized Hydraulic Manifolds
  • Hydraulic Unloading Relief Valve
Hydraulic Power Pack

Reservoir tank with features

  • Preciously fabricated and customized as per the need
  • Covered body for extra safety in case of chemical and pharmaceutical company for any dirt & contaminations.
  • Covered body gives long life of valves and motor with ventilation.
  • Powder coated reservoir tank body for corrosion resistance & long life.
Lock Nut Cylinder

Keep Lever ‘FORWARD’ side on Hydraulic Power pack. The cylinder goes to Distance Piece Side with Moving Head and filter plate are pushed together. At that time when Cylinder’s threaded Ram go forward, Lock the nut of Ram. When pressure reached at maximum working pressure which is set by Pressure Control Valve, try to full tight lock nut of Ram. Check whether the maximum closing pressure has been reached on the contact pressure gauge.

Hydraulic lock nut manual-press

Features:

  • Made From Low Carbon ST-52 grade tube Duly Machined & Honed Finished
  • Internal Piston Rod : EN-8 with duly machined ground and hard chrome plating
  • Piston: EN-9
  • Oil Seal Kit : Canvas Seal + Nitrite Chevron Rod Seal + PU + ‘O’ Ring Nitrite with Teflon backup
  • Working Pressure : 210 Kg/cm2/3000 PSI
Pull Back Cylinder
Hydraulic Cylinder

Filter Press is equipped with Pull Back type Double Acting Hydraulic Cylinder dully honed from inside and dully coupled with moving end head, which Brings Moving Plate Forward ‐Reverse hydraulically. A hydraulic system uses oil to power an actuating cylinder piston. This component is moved to achieve a specific task. A double acting cylinder uses two lines and gives you the full power of your hydraulic system in both directions.

  • Less Effort than Manual Filter Press
  • Equal Distribution of Pressure in Every Chambers
  • Less man power
  • Easy to operate & Handling
  • Easy maintenance
  • Made from low carbon ST-52 grade tube duly machined & honed finished
  • Rod : EN-8 with duly machined ground and hard chrome plating
  • Piston : EN-9
  • Ram Protection Cover : T.P (Taiwan polyester) Nylon Bellow
  • Oil Seal Kit : PU Seals + Nitrite Chevron Rod Seal + PU Wiper Seal + ‘O’ Ring Nitrite with Teflon backup
  • Working Pressure : 210 Kg/cm2/3000 PSI
Optional Accessories

The system shifts the individual plates, opens the filtration chambers, and allows the emptying of the filter press. Automatic shifting replaces manual handling of the plates.

Plate shifter mechanism is used to transport the filter plates. It gradually Shifts plate one by one in Auto Mode & through Hand Held Remote Control in Manual mode and allows the emptying of the filter press. This process can be paused anytime and the operator can remove possible impurities from the cloth. This mechanism pulls open the individual plate, the cake formed between the plates generally falls down by gravity. Generally used for faster filter cake discharge. Speed of the plate shifter can be adjusted in filter press.

NMP Plate Shifting Device
Benefits and fields of use
  • Designed mainly for filter presses with large plates or a great number of plates.
  • Significant facilitation of the filter press attendance– two workers are needed for manual shifting of large plates, and only one worker is needed to check the process of emptying of the filter press during automatic extraction
  • Process automation and shortened emptying period
  • Adjustable speed of plates shifting
Automatic plates shifting options

Individually plate by plate– the gradual shifting of single plates until all the set is shifted. The process can be interrupted at any time and the operator can remove possible impurities from the cloth.

Simultaneous shifting of several plates– shifting is carried out by a stroke of the hydraulic cylinder during the filter press opening. The single plates are fixed to the steel plate connected to the hydraulic cylinder at certain distances and when the steel plate moves, the particular groups of plates are shifted at once. The process is fully automatic.

The drip trays catch spills off the cloth, or washing water during the cloth washing and drain it to the collection trough. They are installed under the set of filtration plates.

Materials

The most frequent material is PP, the plates can also be made of stainless steel or other materials as requested.

Benefits and fields of use
  • Used mainly for large filter presses.
  • Major facilitation of the filter press attendance– the plates need not be removed manually before shifting, which would be very difficult with the large filter presses (large sizes and heavy-weights, limited room for handling).

Drip Tray is installed under filter plates, and make up of liquid collecting tray.The drip tray can be opened and closed by the help of hydraulic cylinders, which are controlled from the panel manually or automatically through PLC. It ensures that the drip trays are in open position for cake discharge and in closed position during filtration. So that it collects the filtrate and keep it away from containers or the conveyor system.

While filtering, the PLC sends output a signal to drip tray, under the work of driven system, the both trays will close.The liquid drips, caused by capillary action, and peripheral filtrate will fall on it and is collected in chute on both sides. After filtering process is finished and before cake discharging, the PLC will send logic signal to open it.

When an automatic cloth washing system is being utilized – as is common with many of today’s filter presses – it is generally helpful for the automated drip trays/bomb doors to capture the water coming from the cloth washing to prevent it from going to the filter cake.

MOC: PP, SS316, SS304, MS with Rubber Lining, PP FRP, other materials as requested. requested.

The filter press is equipped with Air operated Pneumatic Actuators for automatic opening and closing of the valves for slurry inlet and filtrate outlet. The actuator valve operates in auto mode i.e., Feeding, Washing, and Airing Process.

air actuator valve

This system makes it possible to wash the cake residues off the cloth using water under pressure. Washing is performed simultaneously on both sides of the plate.

filter cloth washing system

This device is installed in the upper part of filter press. It’s made up of washing rail, washing frame, washing frame driving travel device, inlet pipe, towing chain, washing pipe, nozzles, washing pipe lifting device, reducing motors etc. It can finish cloth washing in co-operation with plate shifting device under the control of PLC. This system makes it possible to wash the cake residues off the cloth using water under pressure. Washing is performed simultaneously on both sides of the plate.

When it doesn’t work, the device is placed behind the pressing plate, and when it works, after discharging all cakes, pressing plate will compact and release all filter plates, then retreat to the required position. The plate shifting device will move forward and enter into plate taking state under controlled program, and stop after taking the first plate. The washing device will stop after forwarding to the middle position of plate shifting space under the driving of reducing motors. Under spraying state, the washing pipes will move downward and upward to finish cloth washing actions, at this time, the plate shifting device will shift the first plate to the pressing end, then retreat to take the second plate….the process is repeated, until washing of last filter cloth.

Benefits and fields of use
  • Regular washing of the cloth maintains its permanent permeability – the filtration resistance due to clogging of the cloth by the cake residues does not increase
  • Lower loading of the feed pump leads to significant extension of its service life
  • The service life of the cloth is extended

The dropping cake can be conveyed via the hopper to a conveyor, which usually transports the cake to a container.

Benefits and fields of use:

The container does not have to be installed directly under the filter press, but it can be outside the building, or in another room, which is easily accessible for Lorries transporting the containers.

filterpress belt conveyer

After filtration, a liquid suspension remains in the turbidity channel; it can be removed and reliably transported back to the storage tank in order to prevent blockages and rehydration of the discharged cake when the filter press is open. After feeding is completed, operators can remove this sediment by rinsing the core. The rinse medium, mostly water, flows through the turbidity channel and absorbs the solids deposited there.

Core Blow
Feed Pump

Filter press pump selection is based on a various numbers of criteria’s, characteristic of liquid, temperature, acidity, viscosity and required pressure are some of them.

Feed-Pump

The feed pump controls and feeds the slurry/feed in to the Filter press. Flow meter can be used in order to obtain the optimum filling level of the filter press. The feed pump usually increases up to 6 – 15 bar, the flow is controlled by a pressure switch, or a frequency (FM). Types Feed pumps used for Filter Press are Screw pump, Centrifugal pump and AOD pump. The type of pump and the material used depend on the character and properties of the pumped suspension.

Screw Pump

Displacement pumps suitable for pumping non-abrasive substances, and can be regulated by a frequency converter.

filter press pump

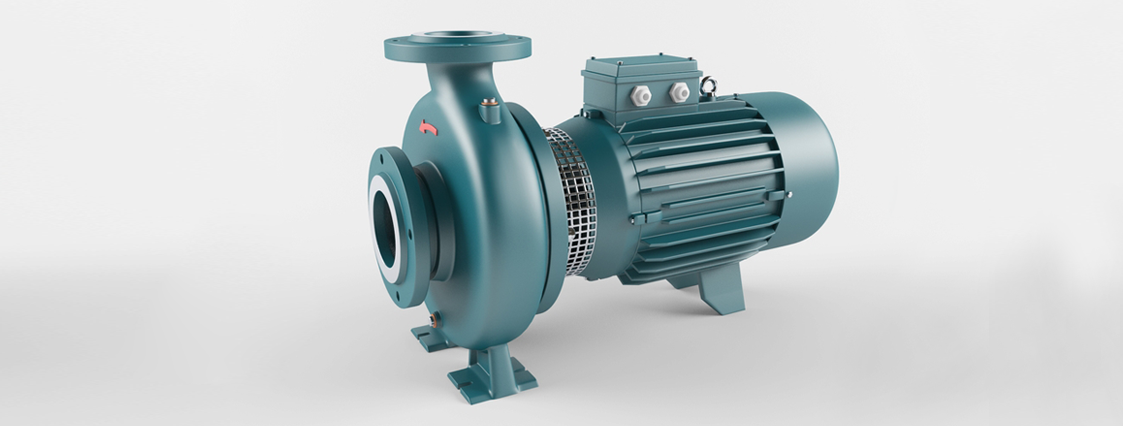

Centrifugal Pump

Pumps suitable for high flow rates. Ideal high-speed filtration and for water pumping.

AOD Pump

Air Operated DiaphragmPump. It is the best pump for a small filter press. It works with pressurized air. The main advantage of this pump is no overfeeding happens in the filter press.

Electric hydraulics are controlled by the NMP Electric Hydraulic Control System (EHCS), which monitors the status of the system and provides an emergency stop push button, which disconnects switch and touch screen control of the filter press hydraulics. Touch screen with very good resolution can provide all diagnosed information of the Filter Press and also allows adjusting the Filter Press process control.

The control part adopts system design concept, and adds auto running and check function. According to the actual working conditions, the control part has three working states for operators to use easily, that is, manual working state when installation and debugging; auto working state when auto running, and maintenance working state when the equipment is checked. To prevent error, every movable part has action interlocking function to protect when running automatically.

The touch screen use Siemens TFT display, it can input the process parameters at site and it’s easy to adjust process control process, with manual and automatic switching device. After auto check and diagnosis of the system, the system will always check whether the executive components is in normal state, if there is any exception, it will alarm on the display screen, to ensure the safe and reliable running of the filter press.

The functions can include: auto pressing and releasing, auto high pressure unloading, auto pressure holding, auto feeding, auto squeezing and discharging, auto blowing, auto cake discharge, auto plate shifting and taking, pause and the full course of close and open of drip tray. It can be controlled both manually and automatically, also can add infrared light curtain protection program according to requirements of clients.

filter press electrical panel

Filter Press Controls

Our standard controls meet all the requirements that are necessary for the operation of your filter press. From the contactor controls for the smallest to the PLC controls to process control systems for complex plants. We use components from market leaders and well-known manufacturers. Your supply of spare parts is thus secured worldwide. Our standard controller is the SIMATIC® S7-1200® in conjunction with a 7” touch panel. Also, in this version, we offer you many possibilities to connect the filter press to your systems/plants.

To meet the requirements for the presentation and the operation of your processes, we also increase the performance of the operating devices and the controls. We are not bound to individual manufacturers. PLCs and process control systems from Siemens, Allen-Bradley, Schneider, ABB and several more have been successfully used by NMP.

  • Supporting Steel Structure
  • Pipes and Fittings
Filter press machine components
